Primary
Flat-helical made up of 16 turns
1.25 " x 100 feet spring bronze weatherstrip (0.01" thick)
17" inside diameter
26" outside diameter

Secondary
12.5" x 60" grey PVC duct pipe
Circumference: 39"
4500 feet of 18 gauge heavy build magnet wire
Turns: 1400
Weight: 22 LB
Inductance: 112 mH
Resonant Frequency: 95 KHz

30 KV @ 250 mA bombarder transformer with slide choke

0.04 uF to 0.08 uF at 45 KV capacitor (MMC type)

Asynchronous Rotary Spark Gap (Propeller Style)

Power Levels: 5 KW & 7.5 KW (so far)

Spark Length: 9 feet (so far)

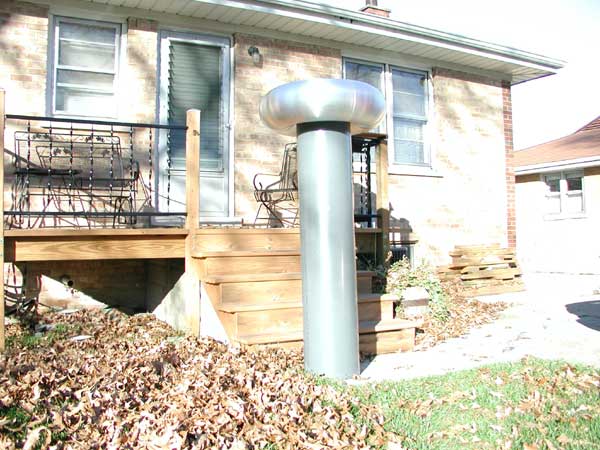

Getting Started

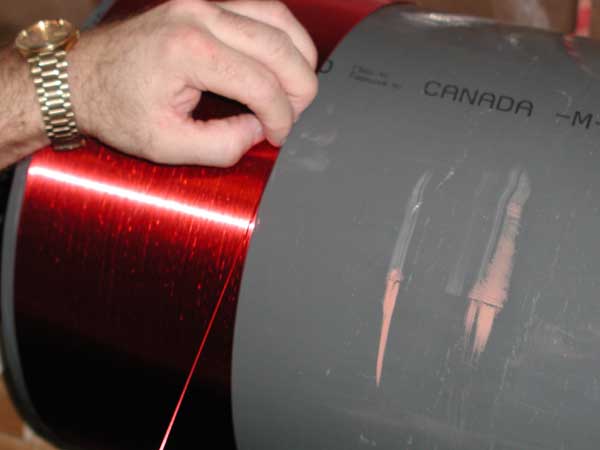

ZEN of Winding the Secondary

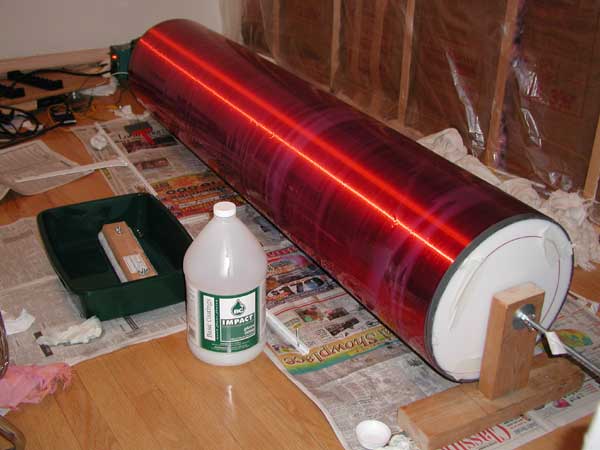

Coating the Secondary with Polyurethane

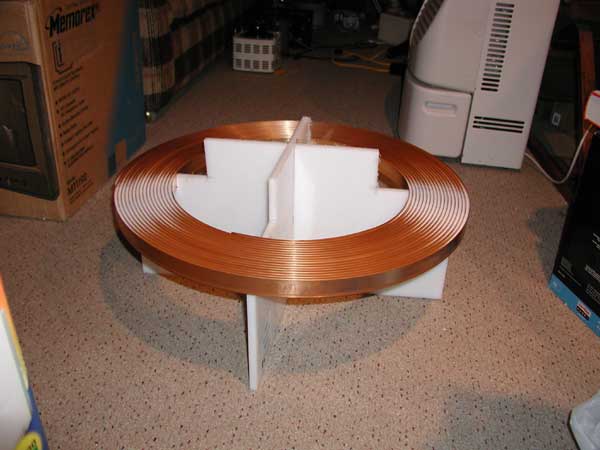

Winding the Primary

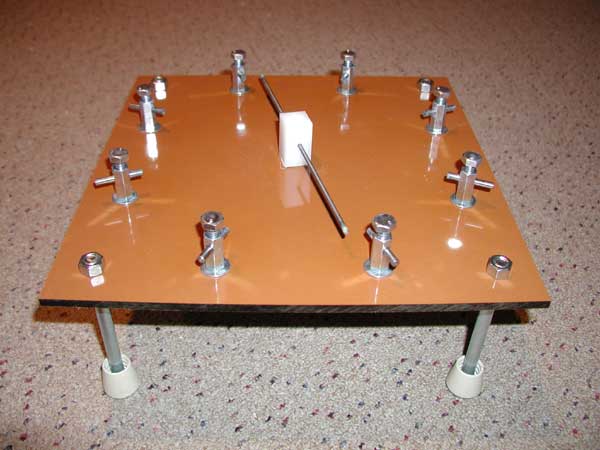

Asynchronous Rotary Spark Gap (propeller Style)

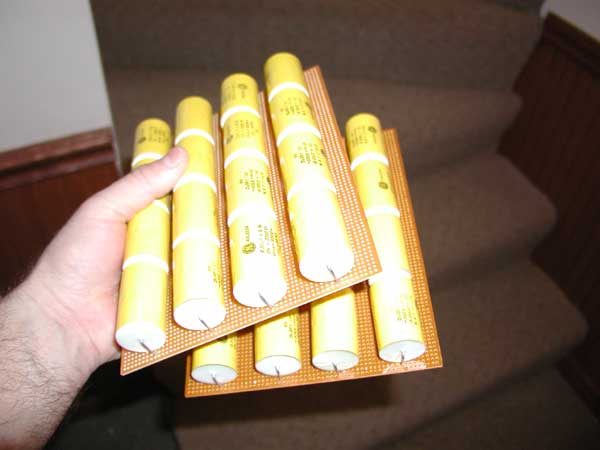

Multi-Mini Capacitors: MMC

1ST Power Up

2ND Power Up

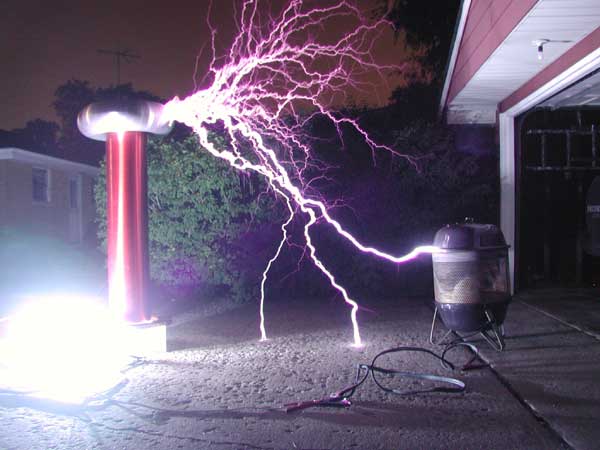

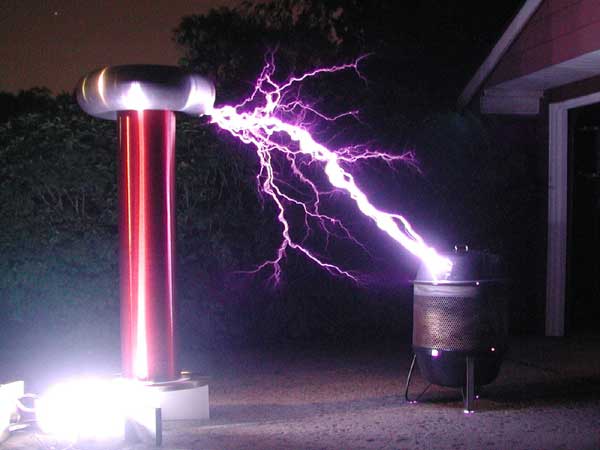

Coils in Action
(videos)
